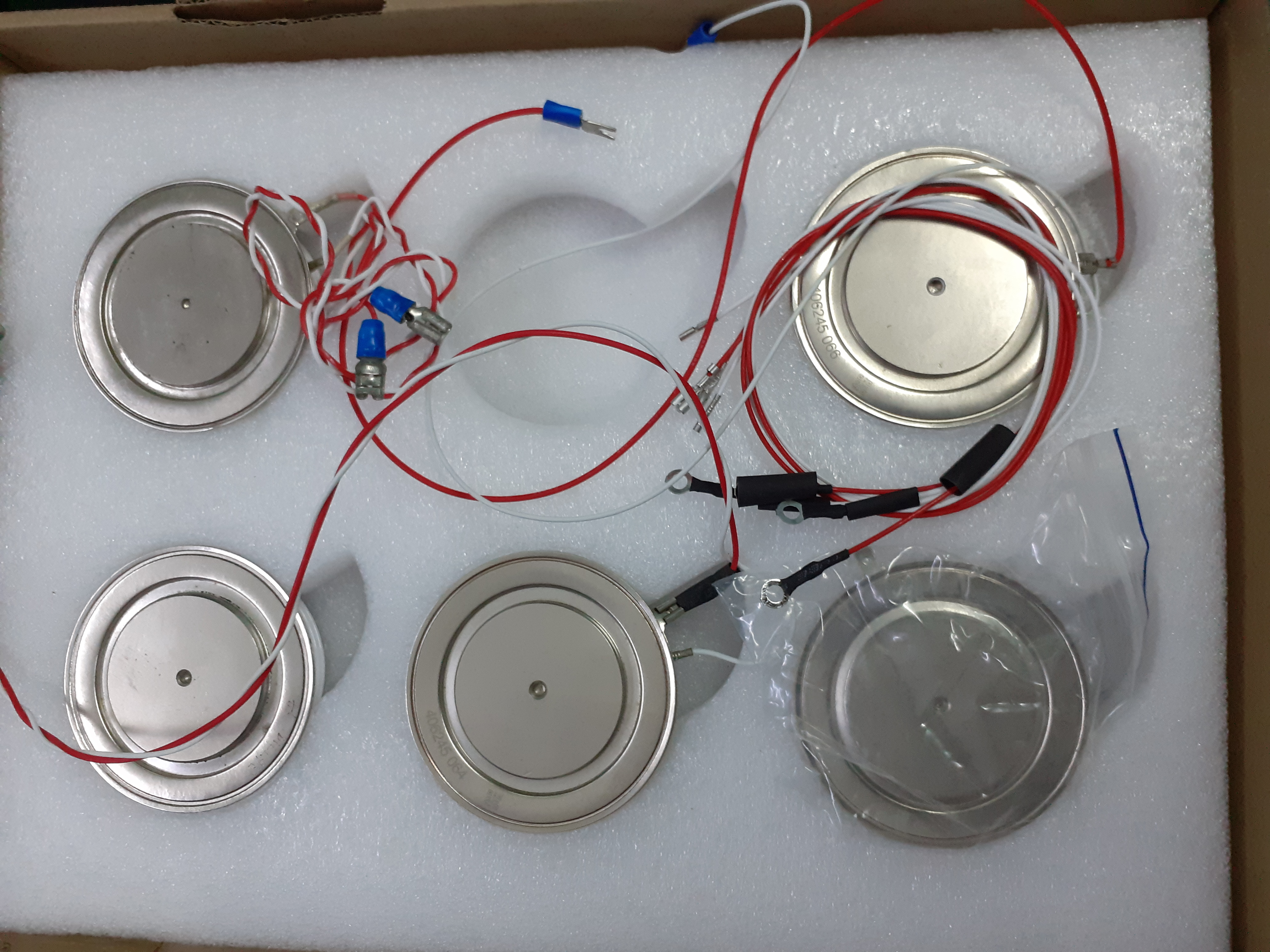

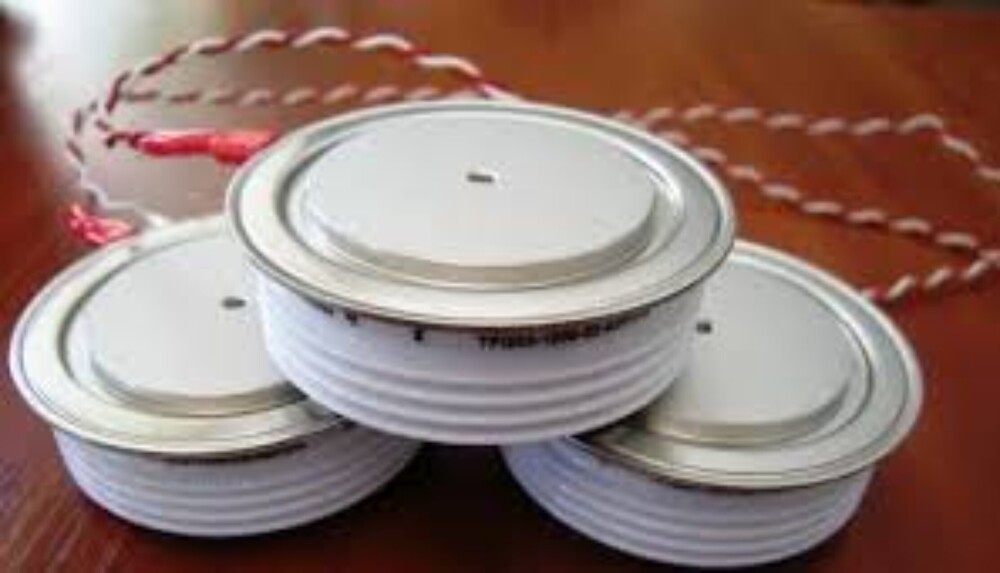

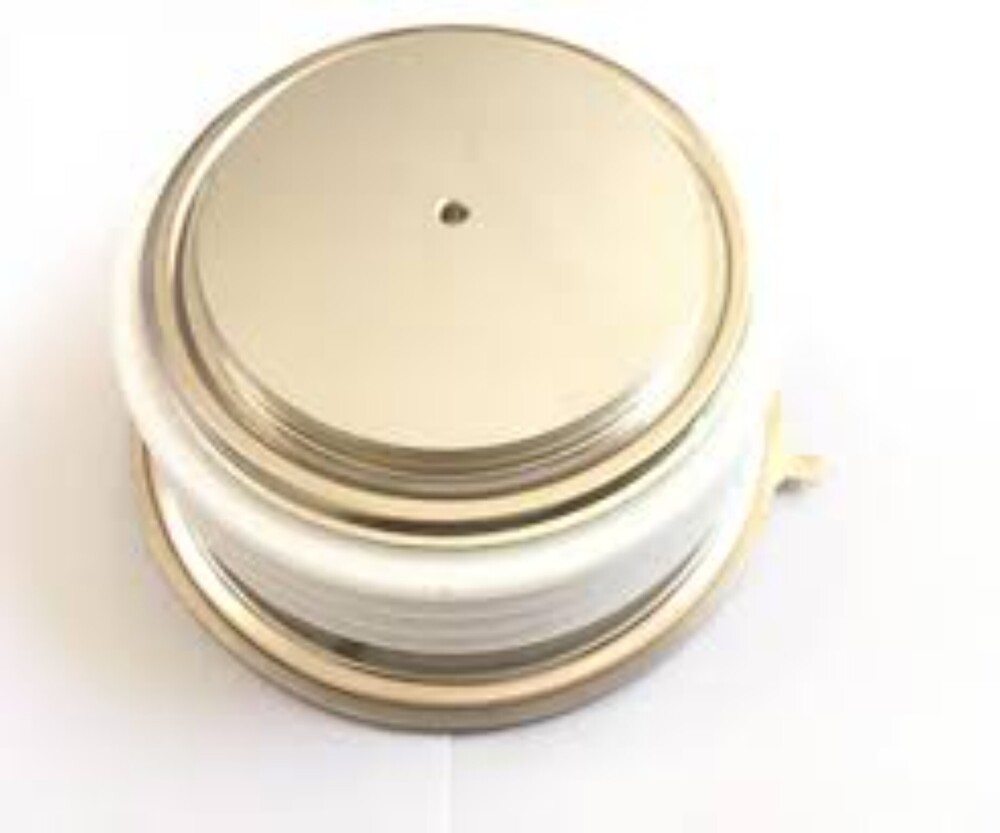

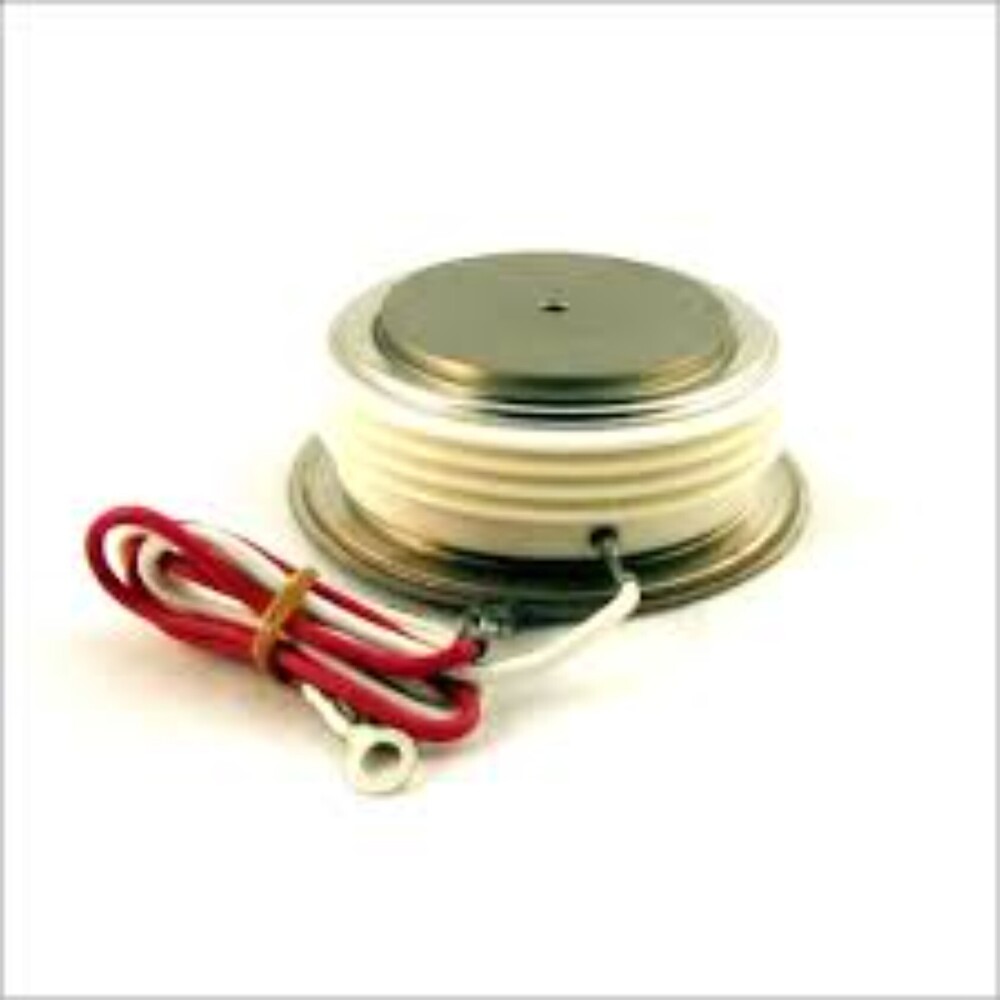

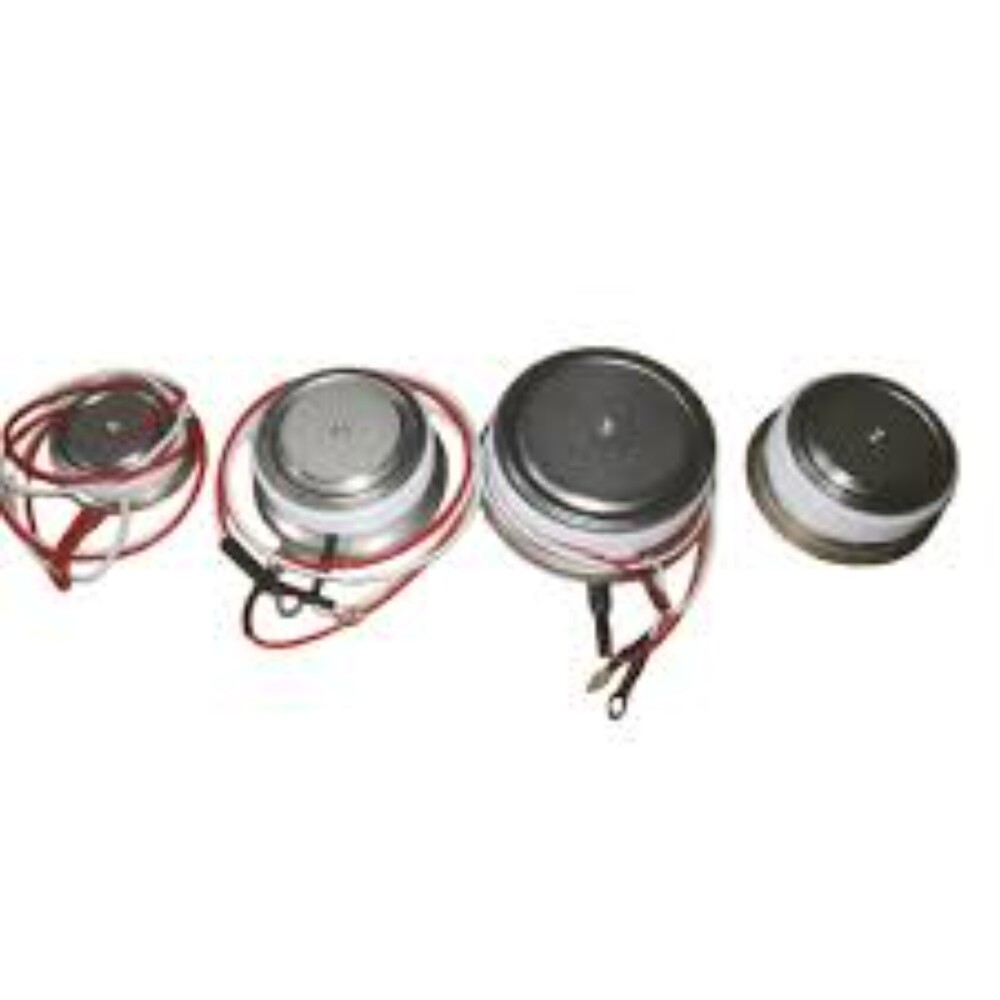

Inverter Thyristor

Q: How do I install the inverter thyristor in my AC/DC motor drive or industrial inverter circuit?

A: The inverter thyristor should be mounted using its stud-mount design on a suitable heat sink surface for efficient heat dissipation. Wire terminals allow straightforward connections to the external DC source, gate trigger control, and load outputs. Follow the wiring diagram specific to your application and ensure all connections are secure.

Q: What is the main benefit of using a high surge current capability thyristor like this one?

A: A high surge current capability (17,000A for 8.3ms) enables the thyristor to withstand and manage short-term overloads or fault conditions without damage. This ensures greater system reliability and protection, especially in demanding phases of AC to DC conversion such as start-up or inrush currents.

Q: When is this thyristor most effective in operation?

A: This thyristor operates most effectively during high-power rectification, switching, and control processes in inverter circuits, especially within environments needing robust phase-controlled current valves. It is highly effective under conditions requiring fast response and handling frequent surges or variable loads.

Q: Where can this inverter thyristor be applied?

A: It is suitable for a broad range of industrial and commercial applications, including AC/DC motor drives, uninterruptible power supplies (UPS), and industrial inverters. Its standardized size and stud mount enable integration into various control panels and power cabinets.

Q: What is the process for triggering and controlling this inverter thyristor?

A: To trigger the thyristor, apply a gate trigger current with a gate trigger voltage not exceeding 2.5V. Once activated, it will conduct until the holding current drops below 200mA or the external control deactivates it. Proper external circuitry is needed to ensure precise timing and control for desired rectification or switching.

Q: What features enhance the durability and reliability of this product?

A: Constructed with high-purity silicon and a robust metallic silver casing, this thyristor offers superior conductivity, heat dissipation, and mechanical strength. It is compliant with IEC 60747-6, operates across wide temperature ranges, and features high thermal conductivity, promoting reliability and longevity even in challenging operating conditions.

Q: What advantages do I gain by choosing this thyristor from an Indian exporter and manufacturer?

A: You benefit from high-quality manufacturing standards, local technical support, competitive pricing, and guaranteed warranty service. The product's global standards compliance and availability from a trusted Indian supplier ensure quality and consistent supply for your projects.
